System Architecture

FCP Conceptual Architecture

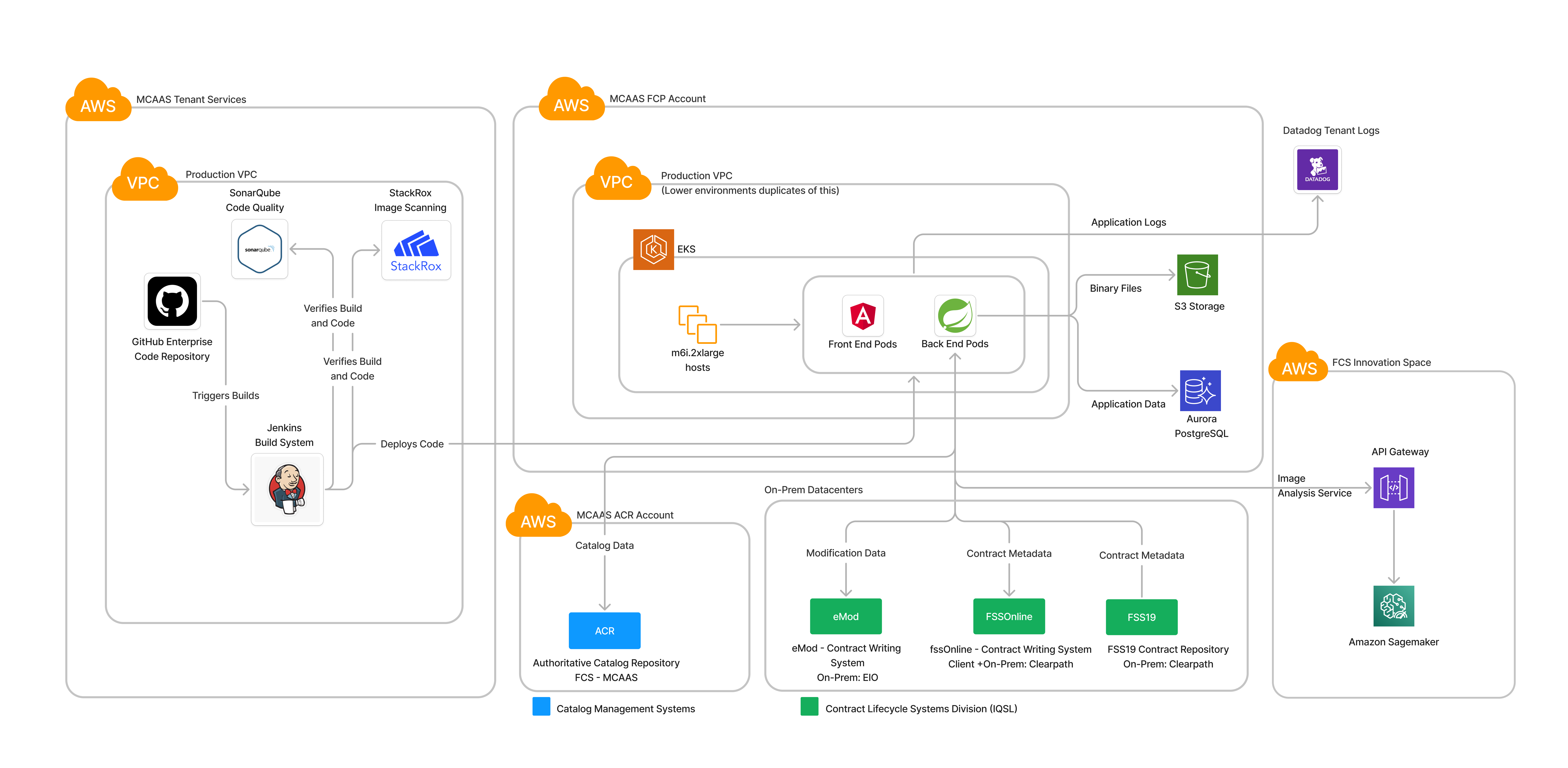

The diagram below shows the conceptual architecture for FCP within the FCS VPCaaS environment.

FCP provides a modern system that is component based using APIs to expose functionality at both the component and data layers. External system calls (i.e. Reporting, eMod, FSSOnline, ACR, etc.) are abstracted and exposed through APIs so that structural downstream changes will not affect the operation of the components. The system is event driven, both from internal and external triggers, resulting in data changes and/or workflow state changes. The UI is a Angular SPA application.

Technical Reference Architecture

Here is the current top-level view of the technical architecture that identifies some of the key technologies that will be used in the solution.
